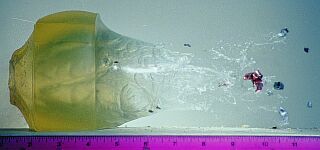

High-Speed
photo (1/2,000,000th-second flash duration) of a Quik-Shok bullet exiting 10%
ordnance gelatin. |
|
Triton's
Premium-Plus Quik-Shok ammunition features a patented, high velocity hollow
point bullet developed by Tom Burczynski, inventor of the
Hydra-Shok®, Starfire® and
EFMJ® bullets. |
New For 2002 -
9mm, 357 SIG, .40 S&W and .45 ACP Quik-Shok/Hi-Vel now feature primer pocket and case mouth sealant.
.40 Super now features case mouth sealant.
Extruded (Hyper-Stressed) QS-2 bullet core
(first stage). Perfectly straight channels and small central
"hub" area severely weaken the core and guarantee
consistent fragmentation.
|
What sets the Quik-Shok apart from other bullets
is that the Quik-Shok is designed to provide controlled core separation
on impact. Unlike conventional hollow point designs, during penetration
the Quik-Shok bullet expands very rapidly and then splits into three
independent segments. These
segments continue to penetrate in three directions over an ever-widening
area within the target. This dynamic terminal action results in maximum
energy distribution and multiple wound channels.
Quik Shok's ability to rapidly transfer its energy over a large
area within a living target provides important advantages. Each sheared segment creates its own temporary cavity,
ultimately forming a series of impinging pressure zones which are believed to produce a powerful incapacitating
effect. This wide-area trauma results in maximum motor interruption in the shortest period of time.
Quik-Shok Manufacturing Stages
From
left to right: (1) QS-2 core inserted in jacket. (2) Core partially
seated. See how the size and shape of the potential segments are
uniformly maintained during compression. (3) Finished Quik-Shok hollow
point. |
Another advantage derived from the divergent paths
taken by the Quik-Shok segments is a much greater increase in the odds of striking or affecting one or more vital
organs - even in the event of a poorly placed bullet. Three permanent crush cavities produce maximum hemorrhage
due to the greater volume of tissue engaged. Quik-Shok is the ideal choice for law enforcement and personal
defense, where near instant incapacitation is critical, while eliminating the risk of over-penetration, at the
same time.
Quik-Shok's unique Hyper-Stressed™ bullet technology provieds extreme accuracy and delivers a new level of
stopping power, far exceeding that of conventional hollow point ammunition and even pre-fragmented rounds.
Click on image to
view high speed video of Quik Shok impact in ballistic gelatin.
Quik-Shok's
cartridge cases are nickel plated for reliable feed and function.

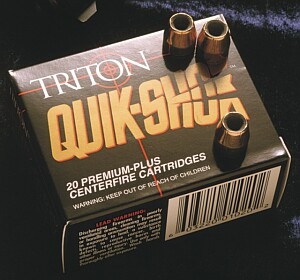

Quik-Shok is packaged 20 rounds per box; 500 rounds per case.
BALLISTICS |
|
Velocity
(feet per second) yds |
Energy
(foot-pounds) yds |
|
Product # |
Caliber |
Bullet Weight |
Muzzle |
25 |
50 |
75 |
100 |
Muzzle |
25 |
50 |
75 |
100 |
Barrel Length |
TR380QSA |
.380 ACP +P |
90 gr. |
1050 |
1004 |
965 |
915 |
878 |
220 |
201 |
186 |
167 |
154 |
4" |
TR9QSA |
9mm +P |
115 gr. |
1325 |
1233 |
1157 |
1099 |
1050 |
448 |
388 |
341 |
308 |
282 |
4.25" |
TR9QSA |
9mm +P |
135 gr. |
1200 |
1128 |
1070 |
1041 |
1007 |
432 |
381 |
343 |
325 |
304 |
4.25" |
TR38QSA |
.38 Special
+P |
110 gr. |
1175 |
1115 |
1065 |
994 |
962 |
337 |
303 |
277 |
241 |
226 |
4" |
TR357QSA |
.357 Magnum |
125 gr. |
1450 |
1336 |
1247 |
1176 |
1123 |
583 |
495 |
425 |
384 |
350 |
4" |
TR357SQSA |
.357 SIG |
115 gr. |
1425 |
1320 |
1228 |
1172 |
1109 |
518 |
444 |
385 |
350 |
314 |
4" |
TR357SQSB |
.357 SIG |
135 gr. |
1300 |
1207 |
1133 |
1133 |
1084 |
507 |
436 |
385 |
385 |
352 |
4" |
TR40QSA |
.40 S&W |
135 gr. |
1325 |
1215 |
1130 |
1065 |
1012 |
526 |
442 |
382 |
340 |
307 |
4.25" |
TR40QSB |
.40 S&W |
155 gr. |
1250 |
1166 |
1101 |
1039 |
1002 |
538 |
468 |
417 |
372 |
345 |
4.25" |
TRlOQSA |
10MM |
155 gr. |
1400 |
1292 |
1200 |
1123 |
1073 |
674 |
574 |
496 |
434 |
396 |
5" |
TR40SQSB |
.40 Super TT |
135 gr. |
1250 |
1156 |
1085 |
1029 |
982 |
468 |
400 |
353 |
317 |
289 |
5" |
TR40SQSC |
.40 Super |
155 gr. |
1500 |
1325 |
1178 |
1218 |
1150 |
774 |
605 |
478 |
510 |
455 |
5" |
TR44QSB |
.44 Magnum |
240 gr. |
1285 |
1220 |
1164 |
1139 |
1102 |
878 |
793 |
722 |
691 |
648 |
4" |
TR45QSA |
.45 ACP +P |
165 gr. |
1250 |
1168 |
1104 |
1026 |
979 |
572 |
500 |
446 |
385 |
351 |
5" |
TR45QSB |
.45 ACP +P |
230 gr. |
950 |
927 |
905 |
884 |
864 |
461 |
439 |
418 |
399 |
381 |
5" |
TR450QSA |
.450 SMC |
165 gr. |
1450 |
1345 |
1253 |
1175 |
1113 |
770 |
663 |
575 |
506 |
454 |
5" |
TR450QSB |
.450 SMC |
230 gr. |
1150 |
1105 |
1066 |
1032 |
1002 |
675 |
623 |
580 |
544 |
513 |
5" |
PERFORMANCE |
Product
# |
Caliber |
Bullet
Weight |
Depth of
Penetration |
Circle of
Dispersion |
Recovered
Weight |
Firearm |
TR9QSA |
9mm +P |
115 gr. |
9.5" |
3" |
111 |
Kahr Mk9 |
TR9QSB |
9mm +P |
135 gr. |
9" |
3.8" |
128 |
Kahr Mk9 |
TR38QSA |
.38 Spl +P |
110 gr. |
8.7" |
2" |
108 |
S&W
66 4in |
TR357QSA |
.357 Mag |
125 gr. |
8.75" |
4" |
124 |
S&W
66 4in |
TR357SQSA |
.357 Sig |
115 gr. |
10.25" |
3.25" |
103 |
Glock 31 |
TR357SQSB |
.357 Sig |
135 gr. |
10.5" |
3.75" |
122 |
Glock 31 |
TR40QSA |
.40 S&W |
135 gr. |
10.25" |
3.62" |
130 |
Kahr Mk40 |
TR40QSB |
.40S&W |
155 gr. |
9.8" |
4.12" |
153 |
Kahr Mk40 |
TR10QSA |
10mm |
155 gr. |
11.5" |
4.5" |
144 |
Glock 20 |
TR45QSA |
.45ACP
+P |
165 gr. |
10.8" |
3.8" |
159 |
Glock 30 |
TR45QSB |
.45ACP
+P |
230 gr. |
10.12" |
3.65" |
229 |
Glock 30 |
Test Medium: 250 Type
A 10% Ordnance Gelatin, calibrated, INS heavy clothing protocol test. Five shot
group average. |
|
